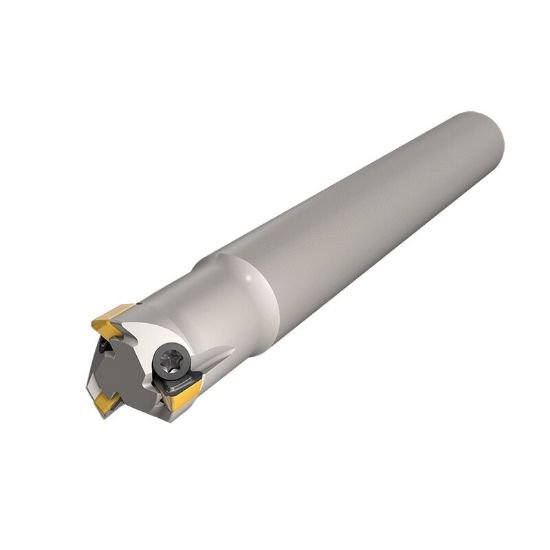

Picture of Iscar HM390 ETP D.31-2-C.31-04 Milling Cutter 90.0° 0.313 Diameter Round 0.312 2.500 OAL 2 Flute

Iscar HM390 ETP D.31-2-C.31-04 Milling Cutter 90.0° 0.313 Diameter Round 0.312 2.500 OAL 2 Flute

Part Number: ISC3343207 0.313 x 0.313 x 0.120 x 2.500 ISO: HM390 ETP D.31-2-C.31-04 ANSI:HM390 ETP D.31-2-C.31-04
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1012912

Description

ISCAR 3343207 Triangle 90.0°, End Mill End Mill Cylindrical 0.3125 Positive 0.3130 7.95MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Inter/Extern External
Coolant Type External
Insert Screw 3323647
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.3130 7.95MM
Length Of Cut 0.1200 3.05MM
Insert Size Ic 4
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.3130 7.95MM
Depth Of Cut Max 0.1200
Cut Dia Max 0.3130 7.95MM
Max Ramp Angle 3.00°
Materials & Finish
Tool Material Steel
