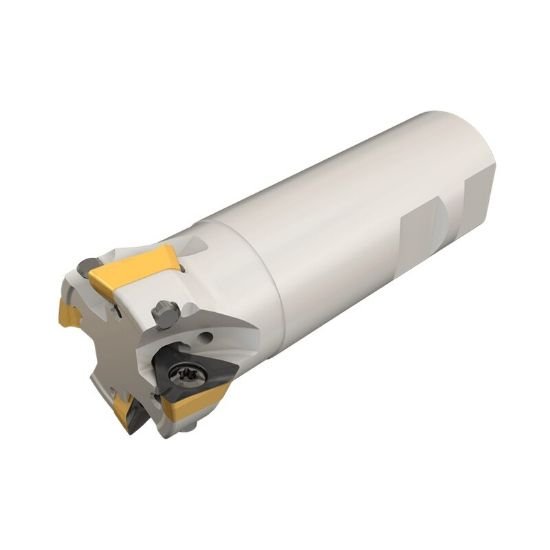

Picture of Iscar HM390 ETD D1.5-4-W1.25-15 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 4 Flute

Iscar HM390 ETD D1.5-4-W1.25-15 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 4 Flute

Part Number: ISC3106802 ISO: HM390 ETD D1.5-4-W1.25-15 ANSI:HM390 ETD D1.5-4-W1.25-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012554
Vendor: Sussex Tool and Supply
$472.00
ISCAR 3106802 Triangle 90.0°, End Mill End Mill Weldon 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 4.0000 101.60MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size Ic 15
Cut Dia Min 1.5000 38.10MM - 1-1/2
Coolant Type Through Hole
Depth Of Cut Max 0.5120
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Screw 7006993
Cutting Edge Angle 90.0°
Max Ramp Angle 2.10°
