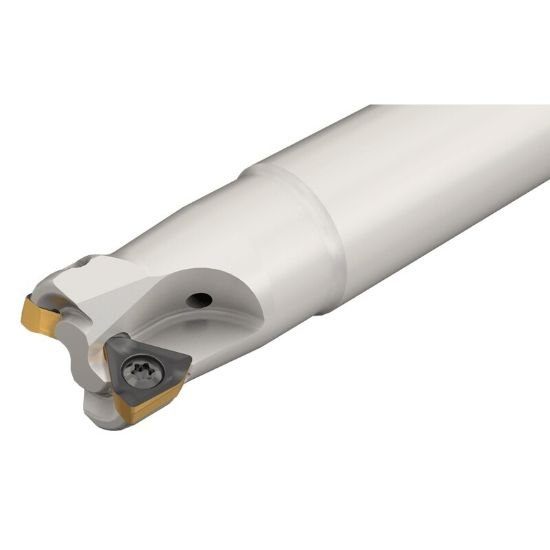

Picture of Iscar HM390 ETC D1.00-4W0.75-07 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.500 OAL 4 Flute

Iscar HM390 ETC D1.00-4W0.75-07 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.500 OAL 4 Flute

Part Number: ISC3107023 ISO: HM390 ETC D1.00-4W0.75-07 ANSI:HM390 ETC D1.00-4W0.75-07
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012589
Vendor: Sussex Tool and Supply
$455.04

Description

ISCAR 3107023 Triangle 90.0°, End Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006639
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.2000
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
