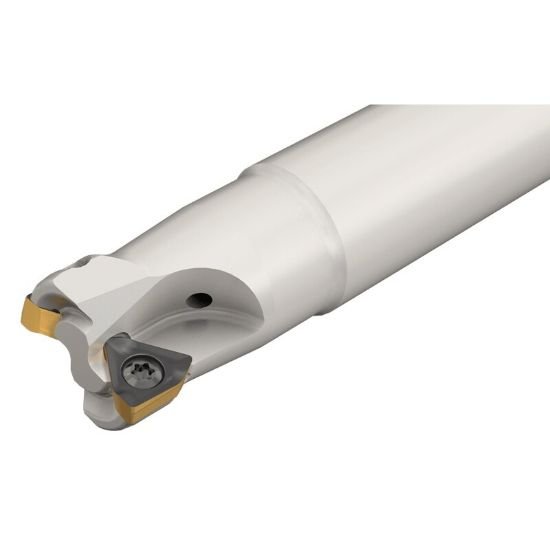

Picture of Iscar HM390 ETC D0.75-3W0.75-07 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.500 OAL 3 Flute

Iscar HM390 ETC D0.75-3W0.75-07 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.500 OAL 3 Flute

Part Number: ISC3106937 ISO: HM390 ETC D0.75-3W0.75-07 ANSI:HM390 ETC D0.75-3W0.75-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012575
Vendor: Sussex Tool and Supply
$368.10
ISCAR 3106937 Triangle 90.0°, End Mill End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.5000 88.90MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size Ic 7
Cut Dia Min 0.7500 19.05MM - 3/4
Coolant Type Through Hole
Depth Of Cut Max 0.2000
Cut Dia Max 0.7500 19.05MM - 3/4
Insert Screw 7006639
Cutting Edge Angle 90.0°
Max Ramp Angle 1.50°
