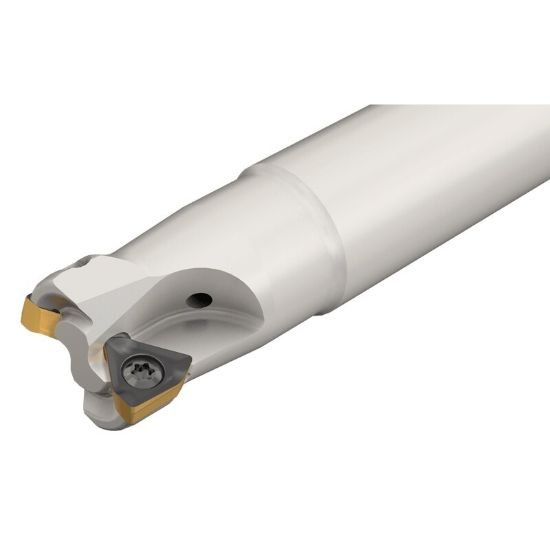

Picture of Iscar HM390 ETC D.625-2W.625-07 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 3.000 OAL 2 Flute

Iscar HM390 ETC D.625-2W.625-07 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 3.000 OAL 2 Flute

Part Number: ISC3106936 ISO: HM390 ETC D.625-2W.625-07 ANSI:HM390 ETC D.625-2W.625-07
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012574
Vendor: Sussex Tool and Supply
$355.20

Description

ISCAR 3106936 Triangle 90.0°, End Mill End Mill Weldon 0.6250 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006639
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.2000
Cut Dia Max 0.6250 15.88MM - 5/8
Max Ramp Angle 1.90°
Materials & Finish
Tool Material Steel
