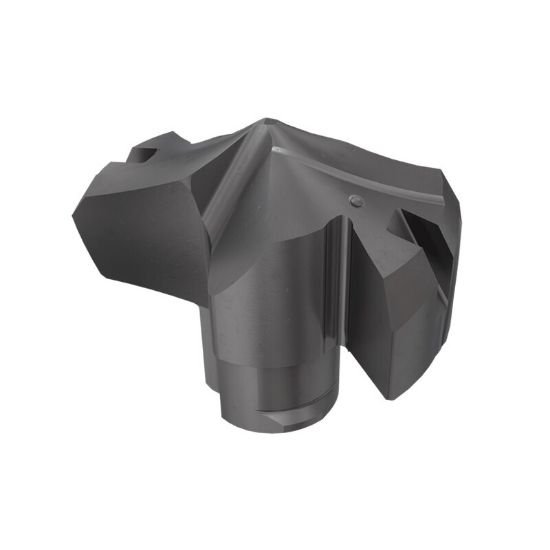

Iscar HCP 1295-IQ IC908 1.295" Exchangeable DCN Drill Self-Centering Heads for Alloy Steel and Cast Iron

Part Number: ISC3382939 ISO: HCP 1295-IQ IC908

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1109454
$248.00
ISCAR 3382939 1.295" Exchangeable DCN Drill Self-Centering Heads for Alloy Steel and Cast Iron Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Tool Material Carbide
Cutting Edge Mat Carbide
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TiAlN
Coolant Thru Thru Coolant
Flutes/Inserts 2
Tool Dia 1.2953 32.90MM
Type Of Tool Drill
Grade IC908
Included Angle 137°
Cut Dia Min 1.2953 32.90MM
Dia Deep 1.5.0x Dia, 5.0x Dia, 3.0x Dia, 8.0x Dia &12.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Multi Spindle Yes
