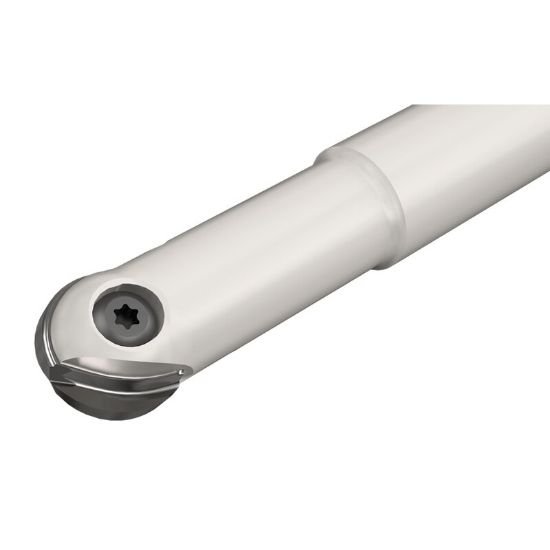

Picture of Iscar HCM D1.0-A-L6.7-C1.0 Milling Cutter 1.000 Diameter Round 1.000 6.700 OAL 1 Flute

Iscar HCM D1.0-A-L6.7-C1.0 Milling Cutter 1.000 Diameter Round 1.000 6.700 OAL 1 Flute

Part Number: ISC3103608 ISO: HCM D1.0-A-L6.7-C1.0 ANSI:HCM D1.0-A-L6.7-C1.0
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$443.52
SKU: 1012070

Description

ISCAR 3103608 Flat Blade Ball Mill End Mill Cylindrical 1.0000 Neutral 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Ball Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Insert Style HB
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Neutral
Coolant Type External
Insert Screw 7003394
Dimensions & Sizing
Overall Length 6.7000 170.18MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 1
Tool Dia 1.0000 25.40MM
Insert Size Ic 1
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.6700
Cut Dia Max 1.0000 25.40MM
Materials & Finish
Tool Material Steel
