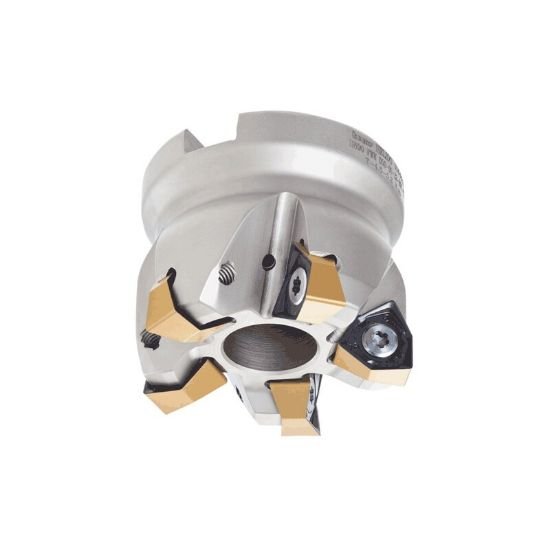

Picture of Iscar H690 FWN D4.00-08-1.50R07 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Iscar H690 FWN D4.00-08-1.50R07 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Part Number: ISC3107250 ISO: H690 FWN D4.00-08-1.50R07 ANSI:H690 FWN D4.00-08-1.50R07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012630
Vendor: Sussex Tool and Supply
$1,080.00
ISCAR 3107250 Trigon 90.0°, Face Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.5000 38.10MM
Overall Length 2.0000 50.80MM
Coolant Thru Thru Coolant
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 7
Cut Dia Min 4.0000 101.60MM
Coolant Type Through Hole
Depth Of Cut Max 0.2750
Cut Dia Max 4.0000 101.60MM
Insert Screw 7005890
Cutting Edge Angle 90.0°
