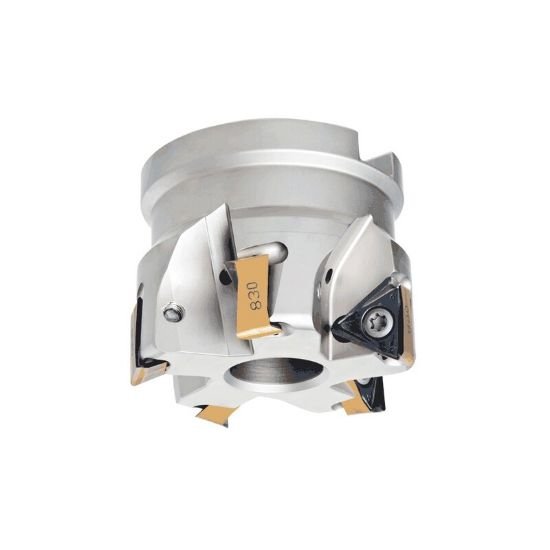

Picture of Iscar H690 F90AX D8.0-11-2.5-16 Milling Cutter 90.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 11 Flute

Iscar H690 F90AX D8.0-11-2.5-16 Milling Cutter 90.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 11 Flute

Part Number: ISC3106653 ISO: H690 F90AX D8.0-11-2.5-16 ANSI:H690 F90AX D8.0-11-2.5-16
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012540
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3106653 Triangle 90.0°, Face Mill SHELL2.5000 Negative 8.0000 203.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style H
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Coolant Type External
Insert Screw 7006316
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 11
Tool Dia 8.0000 203.20MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 8.0000 203.20MM
Depth Of Cut Max 0.5310
Cut Dia Max 8.0000 203.20MM
Materials & Finish
Tool Material Steel
