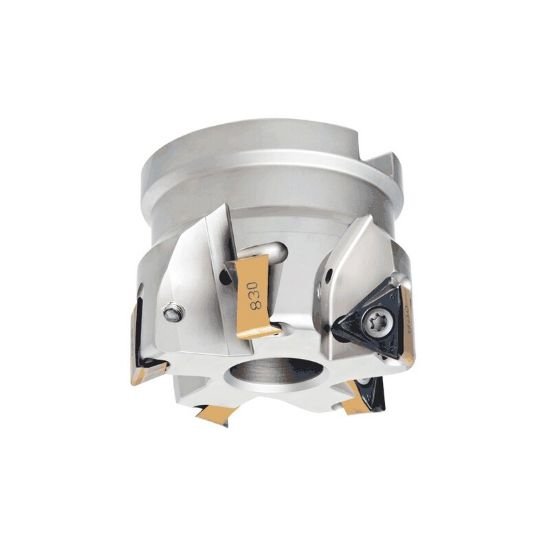

Picture of Iscar H690 F90AX D5.00-9-1.5-16 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 9 Flute

Iscar H690 F90AX D5.00-9-1.5-16 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 9 Flute

Part Number: ISC3106650 ISO: H690 F90AX D5.00-9-1.5-16 ANSI:H690 F90AX D5.00-9-1.5-16
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012538
Vendor: Sussex Tool and Supply
$1,497.60

Description

ISCAR 3106650 Triangle 90.0°, Face Mill SHELL1.5000 Negative 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style H
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000219
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Flutes/Inserts 9
Tool Dia 5.0000 127.00MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.5310
Cut Dia Max 5.0000 127.00MM
Materials & Finish
Tool Material Steel
