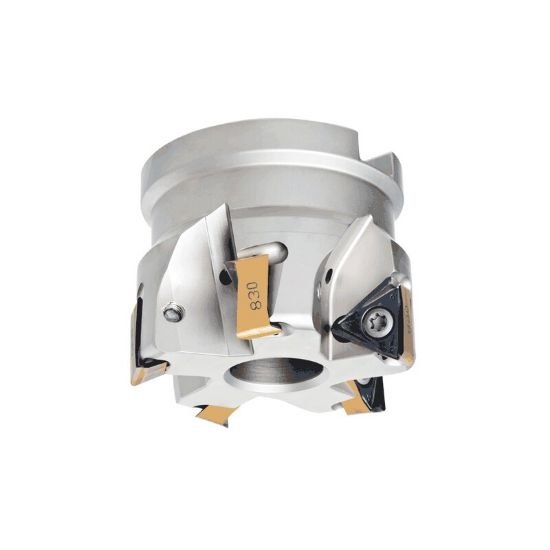

Picture of Iscar H690 F90AX D1.25-4-.50-10 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.378 OAL 4 Flute

Iscar H690 F90AX D1.25-4-.50-10 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.378 OAL 4 Flute

Part Number: ISC3107264 ISO: H690 F90AX D1.25-4-.50-10 ANSI:H690 F90AX D1.25-4-.50-10
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012635
Vendor: Sussex Tool and Supply
$525.12

Description

ISCAR 3107264 Triangle 90.0°, Face Mill SHELL0.5000 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7005890
Dimensions & Sizing
Overall Length 1.3780 35.00MM
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.3100
Cut Dia Max 1.2500 31.75MM - 1-1/4
Materials & Finish
Tool Material Steel
