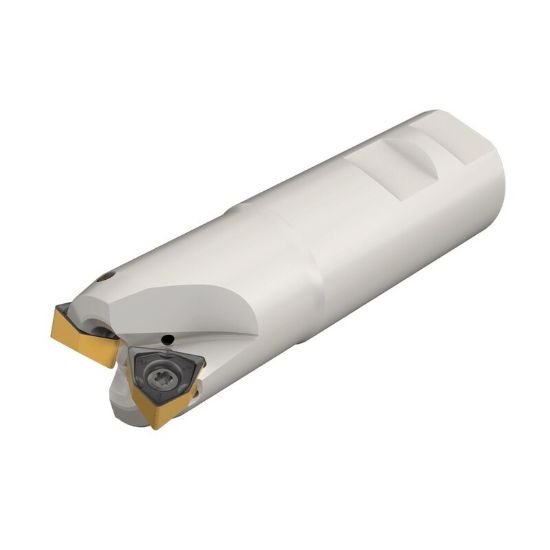

Picture of Iscar H690 EWN D1.50-4-W1.50R07 Milling Cutter 90.0° 1.500 Diameter Weldon 1.500 4.250 OAL 4 Flute

Iscar H690 EWN D1.50-4-W1.50R07 Milling Cutter 90.0° 1.500 Diameter Weldon 1.500 4.250 OAL 4 Flute

Part Number: ISC3107247 ISO: H690 EWN D1.50-4-W1.50R07 ANSI:H690 EWN D1.50-4-W1.50R07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012627
Vendor: Sussex Tool and Supply
$508.00
ISCAR 3107247 Trigon 90.0°, End Mill End Mill Weldon 1.5000 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.5000 38.10MM
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 7
Cut Dia Min 1.5000 38.10MM - 1-1/2
Coolant Type External
Depth Of Cut Max 0.2750
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Screw 7006097
Cutting Edge Angle 90.0°
Max Ramp Angle 1.50°
