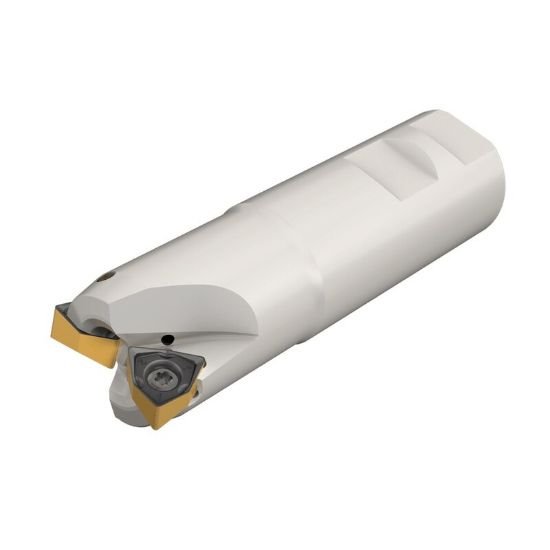

Picture of Iscar H690 EWN D1.25-2-W1.25R07 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 2 Flute

Iscar H690 EWN D1.25-2-W1.25R07 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 2 Flute

Part Number: ISC3107246 ISO: H690 EWN D1.25-2-W1.25R07 ANSI:H690 EWN D1.25-2-W1.25R07
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012626
Vendor: Sussex Tool and Supply
$484.80

Description

ISCAR 3107246 Trigon 90.0°, End Mill End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type External
Insert Screw 7006097
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.2750
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 2.00°
Materials & Finish
Tool Material Steel
