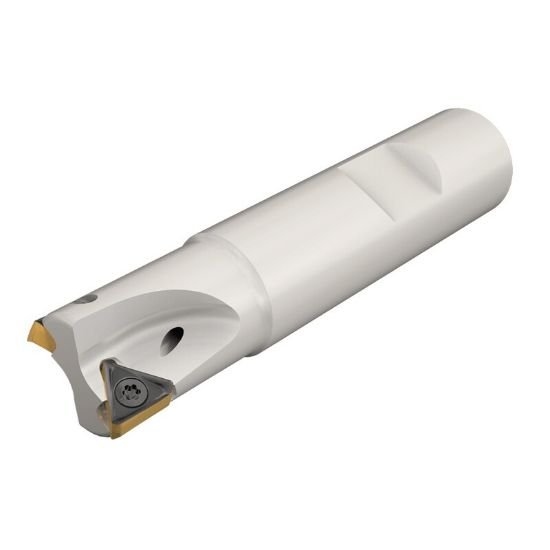

Picture of Iscar H690 E90AX D1.0-4-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

Iscar H690 E90AX D1.0-4-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

Part Number: ISC3181258

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012791
Vendor: Sussex Tool and Supply
$490.00
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Max Ramp Angle 2.60°
Insert Application Roughing, Semi Finishing
Cutter Type Face Mill
Cutting Edge Angle 90.0°
Depth Of Cut Max 0.3100
Overall Length 3.3800 85.85MM
Insert Size (IC) 10
Machine Side (Toolpost) WELDON0.7500
Insert Type Negative
Insert Screw 7005890
Insert Style TN
Type of Tool End Mill
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape Triangle
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 4
Shipping State TEXAS
Tool Material Steel
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.0000 25.40MM
Cut Diameter Min 1.0000 25.40MM
Coolant Thru Non Coolant
Cut Diameter Max 1.0000 25.40MM
Made In USA No
Coolant Type External
