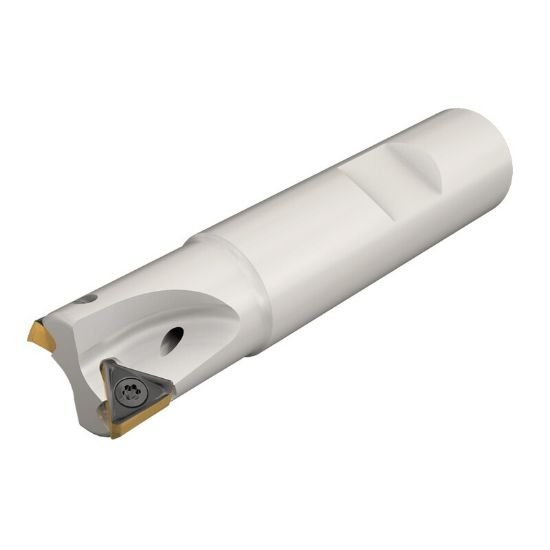

Picture of Iscar H690 E90AX D1.0-3-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

Iscar H690 E90AX D1.0-3-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

Part Number: ISC3181001 ISO: H690 E90AX D1.0-3-W.75-10 ANSI:H690 E90AX D1.0-3-W.75-10
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012737
Vendor: Sussex Tool and Supply
$460.80

Description

ISCAR 3181001 Triangle 90.0°, End Mill End Mill Weldon 0.7500 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Coolant Type External
Insert Screw 7000219
Dimensions & Sizing
Overall Length 3.3800 85.85MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3100
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 2.60°
Materials & Finish
Tool Material Steel
