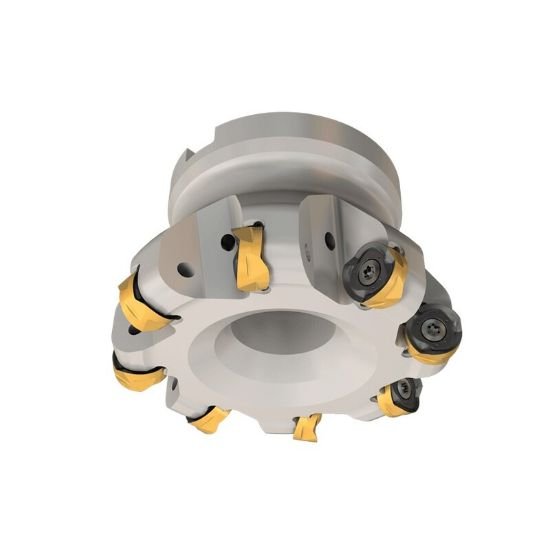

Picture of Iscar H606 FR D2.50-07-1.00-12 Milling Cutter Button Cutter 2.500 Diameter Face Mill 1.000 2.000 OAL 7 Flute

Iscar H606 FR D2.50-07-1.00-12 Milling Cutter Button Cutter 2.500 Diameter Face Mill 1.000 2.000 OAL 7 Flute

Part Number: ISC3106381 ISO: H606 FR D2.50-07-1.00-12 ANSI:H606 FR D2.50-07-1.00-12
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$878.40
SKU: 1012464

Description

ISCAR 3106381 Round Button Cutter SHELL1.0000 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Button Cutter
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RX
Insert Shape/Cutter Pocket Shape Round
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7001973
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 7
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 12
Performance & Capacity
Cut Dia Min 2.0280 51.51MM
Depth Of Cut Max 0.2360
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
Only registered users can write reviews
