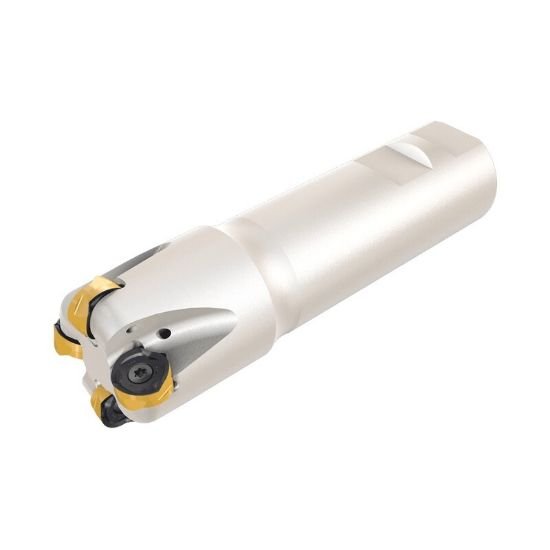

Picture of Iscar H606 ER D1.5-04-W1.25-.50 Milling Cutter Button Cutter 1.500 Diameter Weldon 1.250 5.000 OAL 4 Flute

Iscar H606 ER D1.5-04-W1.25-.50 Milling Cutter Button Cutter 1.500 Diameter Weldon 1.250 5.000 OAL 4 Flute

Part Number: ISC3139168 ISO: H606 ER D1.5-04-W1.25-.50 ANSI:H606 ER D1.5-04-W1.25-.50
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012731
Vendor: Sussex Tool and Supply
$583.49

Description

ISCAR 3139168 Round Button Cutter End Mill Weldon 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Button Cutter
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RX
Insert Shape/Cutter Pocket Shape Round
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7001973
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12
Performance & Capacity
Cut Dia Min 1.0280 26.11MM
Depth Of Cut Max 0.2500
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
