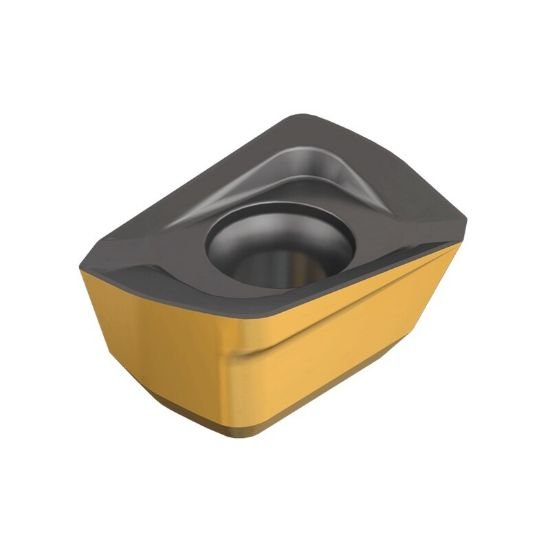

Picture of Iscar H490ANKX1706R15T-FF IC5400 Milling Insert Paralelagram 0.063 Corner Radius TiCN + Al2O3 + TiN

Iscar H490ANKX1706R15T-FF IC5400 Milling Insert Paralelagram 0.063 Corner Radius TiCN + Al2O3 + TiN

Part Number: ISC5606676 ISO: H490ANKX1706R15T-FF IC5400 ANSI:H490ANKX1706R15T-FF IC5400
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1010104
Vendor: Sussex Tool and Supply
$38.90
This product has a minimum quantity of 10

Description

ISCAR 5606676 Parallelogram Insert Negative TiCN + Al2O3 + TiN A tough substrate with MTCVD and alpha alumina coating. Recommended for milling steel at high cutting speed and for parting stainless steel.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 17
Geometry & Angles
Corner Radius 0.0630 1.60MM
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Depth Of Cut Max 0.0790
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IC5400
Compatibility & Fit
Insert Fits Parallelogram
