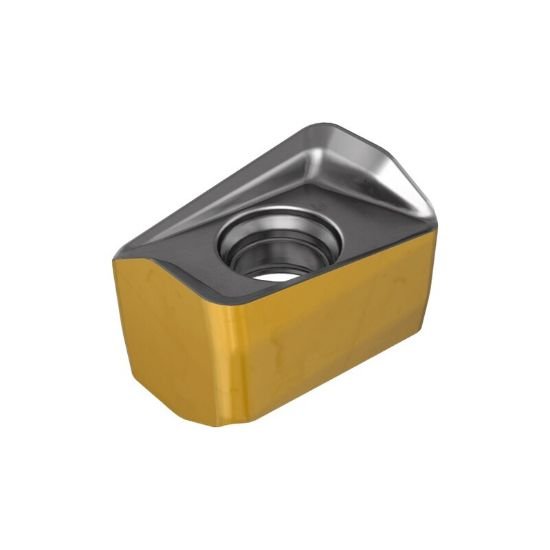

Picture of Iscar H490ANKX170608PNTR IC4050 Milling Insert Paralelagram 0.031 Corner Radius TiCN + Al2O3 + TiN

Iscar H490ANKX170608PNTR IC4050 Milling Insert Paralelagram 0.031 Corner Radius TiCN + Al2O3 + TiN

Part Number: ISC5605612 ISO: H490ANKX170608PNTR IC4050 ANSI:H490ANKX170608PNTR IC4050
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1010085
Vendor: Sussex Tool and Supply
$26.06
This product has a minimum quantity of 10

Description

ISCAR 5605612 Parallelogram Insert Negative TiCN + Al2O3 + TiN MTCVD coated grade. Features high wear resistance,at interrupted-cut applications. Used for alloy steel, stainless steel, and cast iron.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 17
Geometry & Angles
Corner Radius 0.0310 0.79MM
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Depth Of Cut Max 0.6300
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IC4050
Compatibility & Fit
Insert Fits Parallelogram
