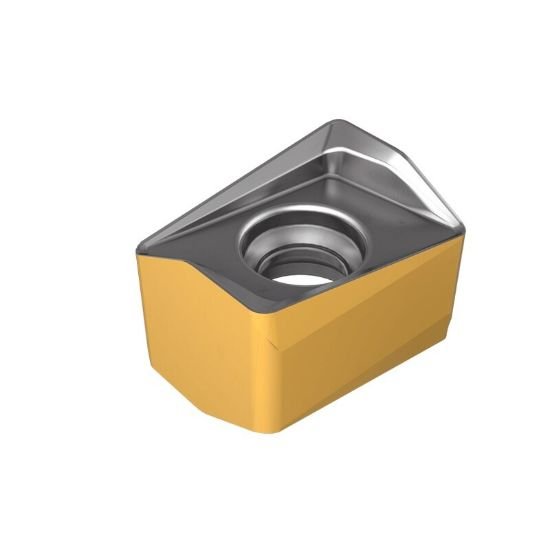

Picture of Iscar H490ANCX120508PDR DT7150 Milling Insert Paralelagram 0.031 Corner Radius Al2O3 + TiAlN

Iscar H490ANCX120508PDR DT7150 Milling Insert Paralelagram 0.031 Corner Radius Al2O3 + TiAlN

Part Number: ISC5606015 ISO: H490ANCX120508PDR DT7150 ANSI:H490ANCX120508PDR DT7150
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1010032
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

ISCAR 5606015 Parallelogram Insert Negative Al2O3 + TiAlN A tough substrate with a dual MTCVD and PVD coating. Recommended for medium to high cutting speeds for machining of both grey and nodularcast iron. Features high wear and chipping resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 12
Geometry & Angles
Corner Radius 0.0310 0.79MM
Performance & Capacity
Cut Rating Graphite, Gray Iron, Ductile Iron, >50HRC Steel
Depth Of Cut Max 0.4330
Materials & Finish
Cutting Edge Mat Carbide
Coating Al2O3 + TiAlN
Grade DT7150
Compatibility & Fit
Insert Fits Parallelogram
