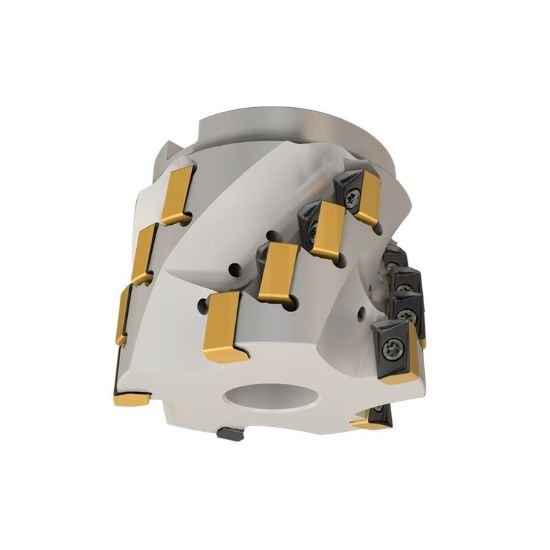

Picture of Iscar H490 SMD2.5-1.9-3-1.00-17 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 2.362 2.760 OAL 9 Flute

Iscar H490 SMD2.5-1.9-3-1.00-17 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 2.362 2.760 OAL 9 Flute

Part Number: ISC3105517 ISO: H490 SMD2.5-1.9-3-1.00-17 ANSI:H490 SMD2.5-1.9-3-1.00-17
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012315
Vendor: Sussex Tool and Supply
$1,161.60

Description

ISCAR 3105517 Parallelogram 90.0°, Corn Cob SHELL2.3620 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000219
Dimensions & Sizing
Overall Length 2.7600 70.10MM
Flutes/Inserts 9
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 1.8300
Materials & Finish
Tool Material Steel
