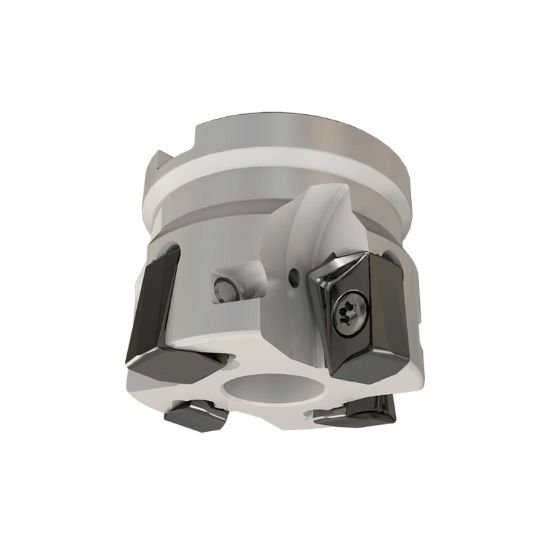

Picture of Iscar H490 F90AXD8.00-10-2.5-17 Milling Cutter 90.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 10 Flute

Iscar H490 F90AXD8.00-10-2.5-17 Milling Cutter 90.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 10 Flute

Part Number: ISC3105194 ISO: H490 F90AXD8.00-10-2.5-17 ANSI:H490 F90AXD8.00-10-2.5-17
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012248
Vendor: Sussex Tool and Supply
$2,265.60

Description

ISCAR 3105194 Parallelogram 90.0°, Face Mill SHELL2.5000 Negative 8.0000 203.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type External
Insert Screw 7000219
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 10
Tool Dia 8.0000 203.20MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 8.0000 203.20MM
Depth Of Cut Max 0.6420
Cut Dia Max 8.0000 203.20MM
Materials & Finish
Tool Material Steel
