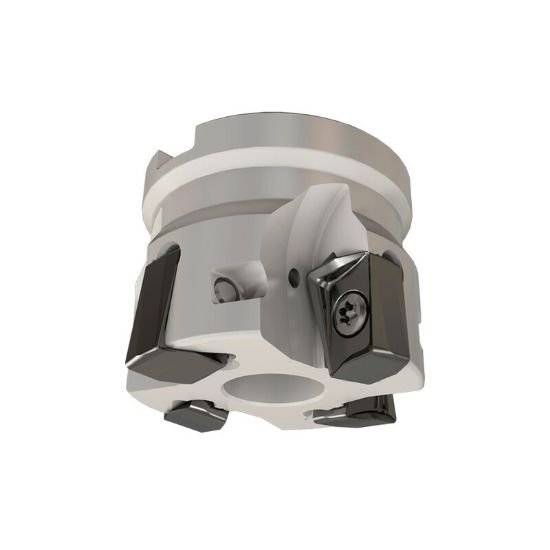

Picture of Iscar H490 F90AXD12.0-16-2.5-17 Milling Cutter 90.0° 12.00 Diameter Face Mill 2.500 2.480 OAL 16 Flute

Iscar H490 F90AXD12.0-16-2.5-17 Milling Cutter 90.0° 12.00 Diameter Face Mill 2.500 2.480 OAL 16 Flute

Part Number: ISC3105406 ISO: H490 F90AXD12.0-16-2.5-17 ANSI:H490 F90AXD12.0-16-2.5-17
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012302
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3105406 Parallelogram 90.0°, Face Mill SHELL2.5000 Negative 12.0000 304.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type External
Insert Screw 4305676
Dimensions & Sizing
Overall Length 2.4800 62.99MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 16
Tool Dia 12.0000 304.80MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 12.0000 304.80MM
Depth Of Cut Max 0.1140
Cut Dia Max 12.0000 304.80MM
Materials & Finish
Tool Material Steel
