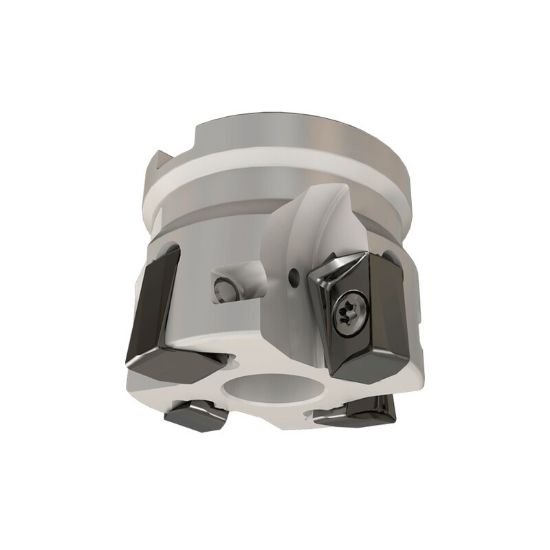

Picture of Iscar H490 F90AX D6.0-12-2.0-17 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 12 Flute

Iscar H490 F90AX D6.0-12-2.0-17 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 12 Flute

Part Number: ISC3104630 ISO: H490 F90AX D6.0-12-2.0-17 ANSI:H490 F90AX D6.0-12-2.0-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012177
Vendor: Sussex Tool and Supply
$1,790.00
ISCAR 3104630 Parallelogram 90.0°, Face Mill SHELL2.0000 Negative 6.0000 152.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 2.0000 50.80MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 12
Tool Dia 6.0000 152.40MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 17
Cut Dia Min 6.0000 152.40MM
Coolant Type External
Depth Of Cut Max 0.6420
Cut Dia Max 6.0000 152.40MM
Insert Screw 7000219
Cutting Edge Angle 90.0°
