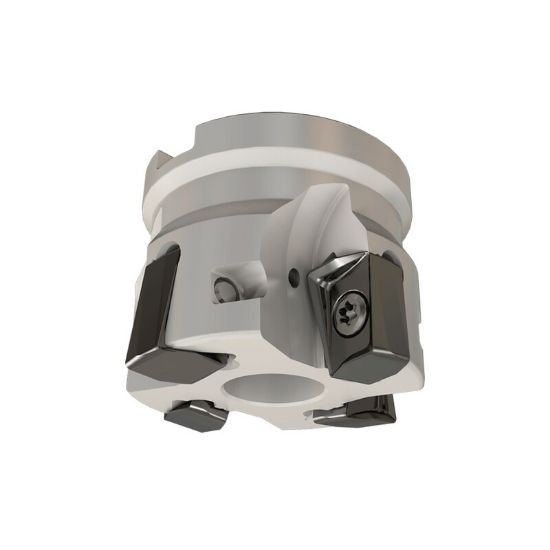

Picture of Iscar H490 F90AX D5.0-10-1.5-17 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 10 Flute

Iscar H490 F90AX D5.0-10-1.5-17 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.500 OAL 10 Flute

Part Number: ISC3104628 ISO: H490 F90AX D5.0-10-1.5-17 ANSI:H490 F90AX D5.0-10-1.5-17
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012175
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3104628 Parallelogram 90.0°, Face Mill SHELL1.5000 Negative 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000219
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Flutes/Inserts 10
Tool Dia 5.0000 127.00MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.6420
Cut Dia Max 5.0000 127.00MM
Materials & Finish
Tool Material Steel
