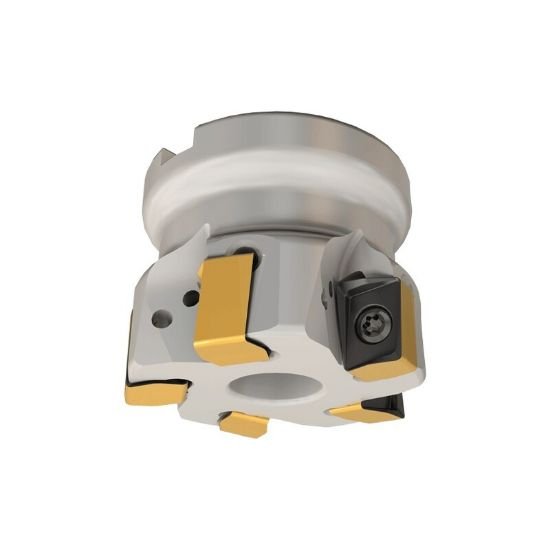

Picture of Iscar H490 F90AX D3.00-5-1.0-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 5 Flute

Iscar H490 F90AX D3.00-5-1.0-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 5 Flute

Part Number: ISC3104779 ISO: H490 F90AX D3.00-5-1.0-12 ANSI:H490 F90AX D3.00-5-1.0-12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012191
Vendor: Sussex Tool and Supply
$903.36

Description

ISCAR 3104779 Parallelogram 90.0°, Face Mill SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 5
Tool Dia 3.0000 76.20MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.4720
Cut Dia Max 3.0000 76.20MM
Materials & Finish
Tool Material Steel
