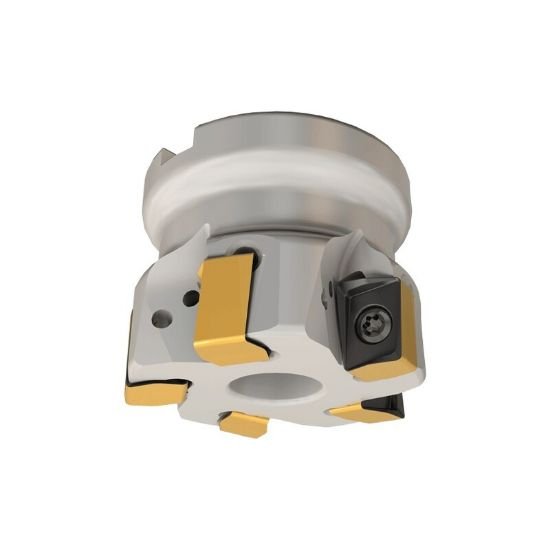

Picture of Iscar H490 F90AX D2.50-4-1.0-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

Iscar H490 F90AX D2.50-4-1.0-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

Part Number: ISC3104777 ISO: H490 F90AX D2.50-4-1.0-12 ANSI:H490 F90AX D2.50-4-1.0-12
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012189
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3104777 Parallelogram 90.0°, Face Mill SHELL1.0000 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 4
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.4720
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
