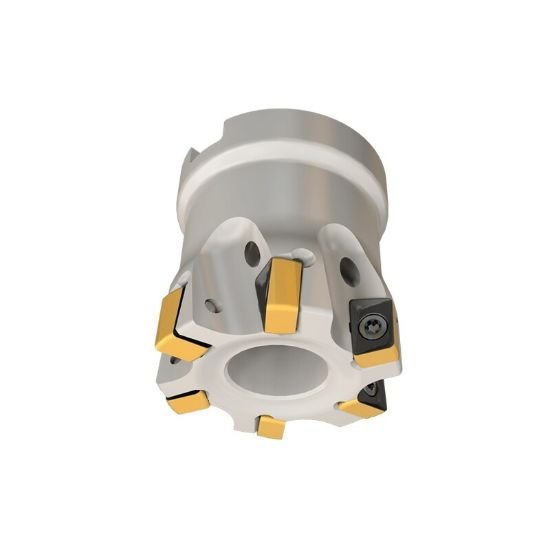

Picture of Iscar H490 F90AX D1.50-5-.75-09 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 5 Flute

Iscar H490 F90AX D1.50-5-.75-09 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 5 Flute

Part Number: ISC3105898 ISO: H490 F90AX D1.50-5-.75-09 ANSI:H490 F90AX D1.50-5-.75-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012384
Vendor: Sussex Tool and Supply
$529.00
ISCAR 3105898 Parallelogram 90.0°, End Mill SHELL0.7500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.7500 19.05MM
Overall Length 1.5700 39.88MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 9
Cut Dia Min 1.5000 38.10MM - 1-1/2
Coolant Type Through Hole
Depth Of Cut Max 0.3150
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Screw 7005890
Cutting Edge Angle 90.0°
