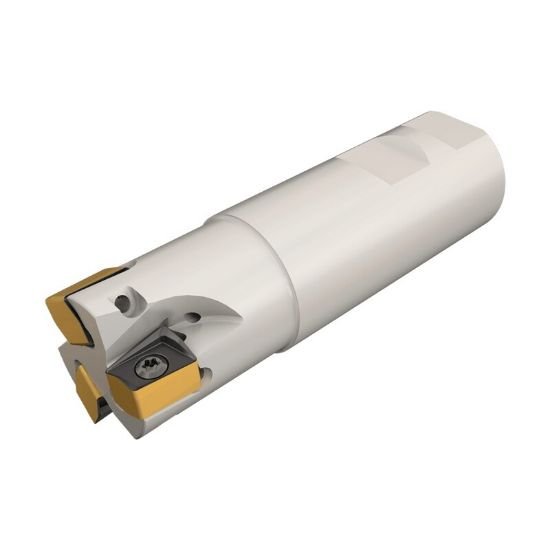

Picture of Iscar H490 E90AXD1.50-4W1.25-12 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.250 OAL 4 Flute

Iscar H490 E90AXD1.50-4W1.25-12 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.250 OAL 4 Flute

Part Number: ISC3104767 ISO: H490 E90AXD1.50-4W1.25-12 ANSI:H490 E90AXD1.50-4W1.25-12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012187
Vendor: Sussex Tool and Supply
$569.28

Description

ISCAR 3104767 Parallelogram 90.0°, End Mill End Mill Weldon 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.4720
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 1.50°
Materials & Finish
Tool Material Steel
