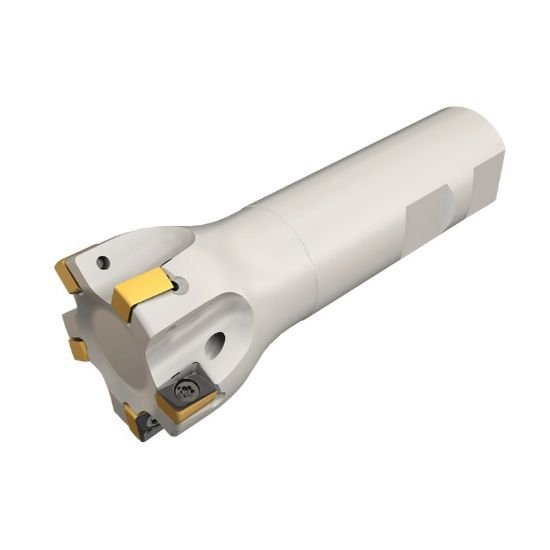

Picture of Iscar H490 E90AXD1.25-4C1.25-9B Milling Cutter 90.0° 1.250 Diameter Round 1.250 7.870 OAL 4 Flute

Iscar H490 E90AXD1.25-4C1.25-9B Milling Cutter 90.0° 1.250 Diameter Round 1.250 7.870 OAL 4 Flute

Part Number: ISC3105882 ISO: H490 E90AXD1.25-4C1.25-9B ANSI:H490 E90AXD1.25-4C1.25-9B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012379
Vendor: Sussex Tool and Supply
$536.00
ISCAR 3105882 Parallelogram 90.0°, End Mill End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 7.8700 199.90MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 9
Cut Dia Min 1.2500 31.75MM - 1-1/4
Coolant Type Through Hole
Depth Of Cut Max 0.3150
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Screw 7005890
Cutting Edge Angle 90.0°
