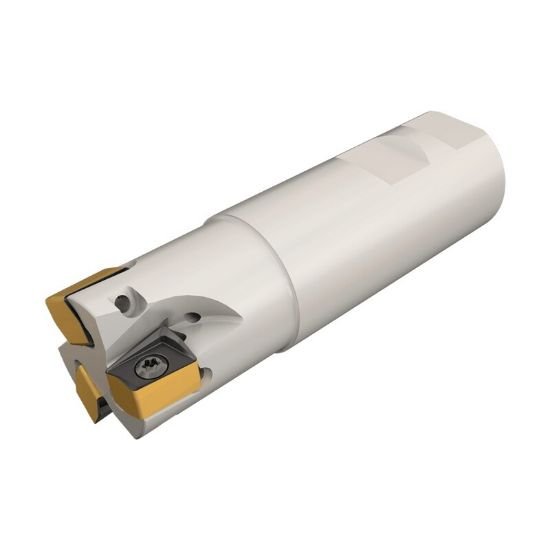

Picture of Iscar H490 E90AXD1.00-2-C1.0-12 Milling Cutter 90.0° 1.000 Diameter Round 1.000 7.874 OAL 2 Flute

Iscar H490 E90AXD1.00-2-C1.0-12 Milling Cutter 90.0° 1.000 Diameter Round 1.000 7.874 OAL 2 Flute

Part Number: ISC3104765 ISO: H490 E90AXD1.00-2-C1.0-12 ANSI:H490 E90AXD1.00-2-C1.0-12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012185
Vendor: Sussex Tool and Supply
$436.80

Description

ISCAR 3104765 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.4720
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 1.50°
Materials & Finish
Tool Material Steel
