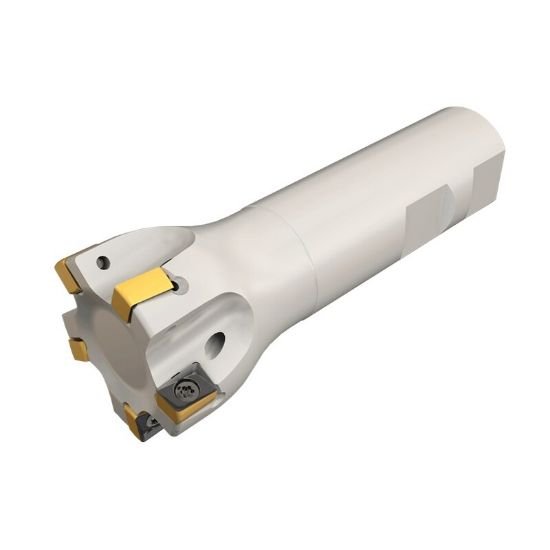

Picture of Iscar H490 E90AXD.75-2-C.75-09B Milling Cutter 90.0° 0.750 Diameter Round 0.750 6.000 OAL 2 Flute

Iscar H490 E90AXD.75-2-C.75-09B Milling Cutter 90.0° 0.750 Diameter Round 0.750 6.000 OAL 2 Flute

Part Number: ISC3105880 ISO: H490 E90AXD.75-2-C.75-09B ANSI:H490 E90AXD.75-2-C.75-09B
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012377
Vendor: Sussex Tool and Supply
$414.72

Description

ISCAR 3105880 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.7500 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7005890
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3150
Cut Dia Max 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Steel
