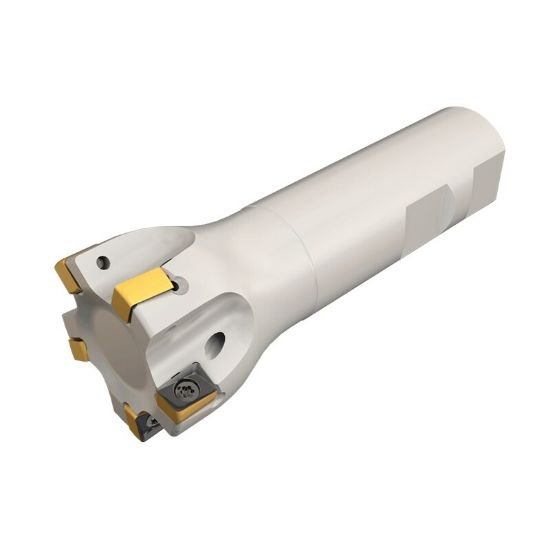

Picture of Iscar H490 E90AX D1.50-5W1.0-09 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 5 Flute

Iscar H490 E90AX D1.50-5W1.0-09 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 5 Flute

Part Number: ISC3105893 ISO: H490 E90AX D1.50-5W1.0-09 ANSI:H490 E90AX D1.50-5W1.0-09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012383
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3105893 Parallelogram 90.0°, End Mill End Mill Weldon 1.0000 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7005890
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.3150
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
