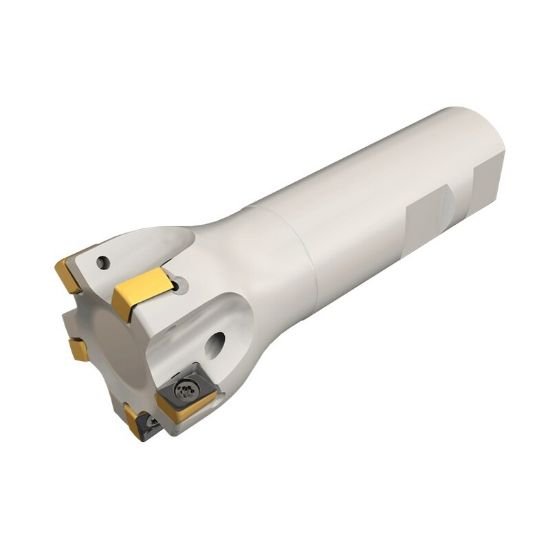

Picture of Iscar H490 E90AX D1.0-4-W.75-09 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

Iscar H490 E90AX D1.0-4-W.75-09 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

Part Number: ISC3105272 ISO: H490 E90AX D1.0-4-W.75-09 ANSI:H490 E90AX D1.0-4-W.75-09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012270
Vendor: Sussex Tool and Supply
$472.32

Description

ISCAR 3105272 Parallelogram 90.0°, End Mill End Mill Weldon 0.7500 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7005890
Dimensions & Sizing
Overall Length 3.3800 85.85MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3150
Cut Dia Max 1.0000 25.40MM
Materials & Finish
Tool Material Steel
