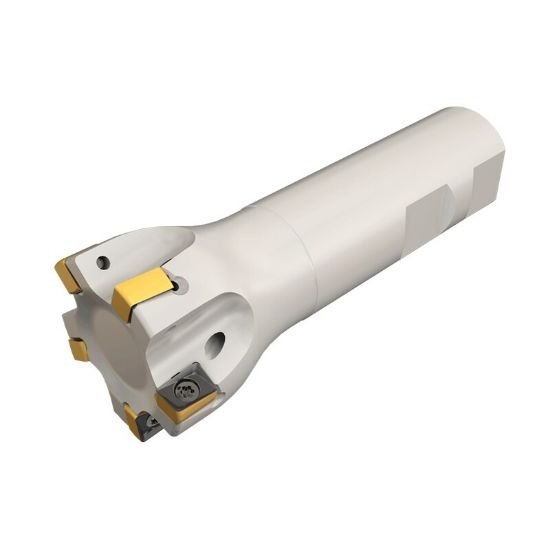

Picture of Iscar H490 E90AX D1.0-3-W.75-09 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

Iscar H490 E90AX D1.0-3-W.75-09 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

Part Number: ISC3105891 ISO: H490 E90AX D1.0-3-W.75-09 ANSI:H490 E90AX D1.0-3-W.75-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012381
Vendor: Sussex Tool and Supply
$417.00
ISCAR 3105891 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.7500 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.3800 85.85MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 9
Cut Dia Min 1.0000 25.40MM
Coolant Type Through Hole
Depth Of Cut Max 0.3150
Cut Dia Max 1.0000 25.40MM
Insert Screw 7005890
Cutting Edge Angle 90.0°
