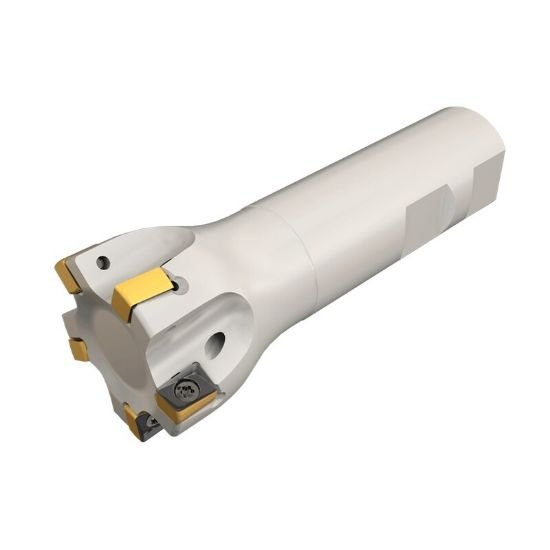

Picture of Iscar H490 E90AX D.75-2-W.75-09 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 2 Flute

Iscar H490 E90AX D.75-2-W.75-09 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 2 Flute

Part Number: ISC3105890 ISO: H490 E90AX D.75-2-W.75-09 ANSI:H490 E90AX D.75-2-W.75-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012380
Vendor: Sussex Tool and Supply
$368.10
ISCAR 3105890 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.7500 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.3800 85.85MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 9
Cut Dia Min 0.7500 19.05MM - 3/4
Coolant Type Through Hole
Depth Of Cut Max 0.3150
Cut Dia Max 0.7500 19.05MM - 3/4
Insert Screw 7005890
Cutting Edge Angle 90.0°
