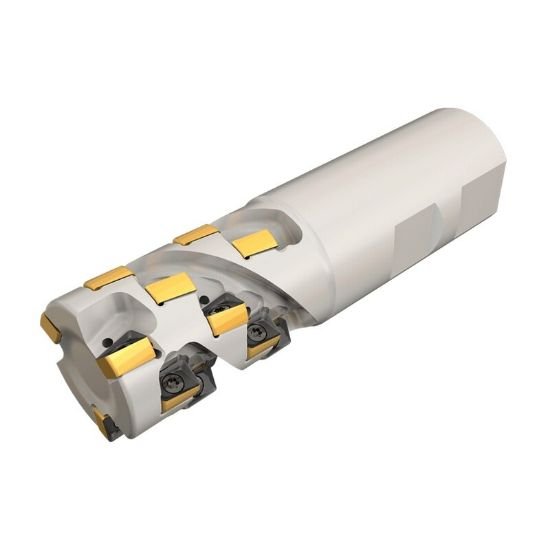

Picture of Iscar H490 ANK D1.0-1.4-W1.0-09 Milling Cutter 90.0°, Corn Cob 1.000 Diameter Weldon 1.000 3.930 OAL 10 Flute

Iscar H490 ANK D1.0-1.4-W1.0-09 Milling Cutter 90.0°, Corn Cob 1.000 Diameter Weldon 1.000 3.930 OAL 10 Flute

Part Number: ISC3105906 ISO: H490 ANK D1.0-1.4-W1.0-09 ANSI:H490 ANK D1.0-1.4-W1.0-09
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012387
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3105906 Parallelogram 90.0°, Corn Cob End Mill Weldon 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7005890
Dimensions & Sizing
Overall Length 3.9300 99.82MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 10
Tool Dia 1.0000 25.40MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 1.6800
Materials & Finish
Tool Material Steel
