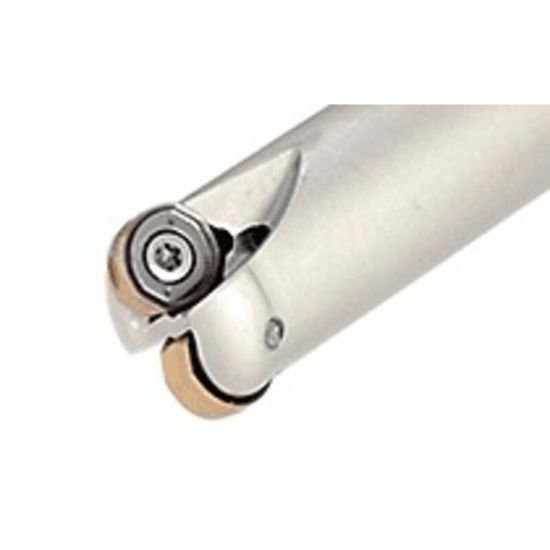

Picture of Iscar H400 ERD1.25-5-2.5W125-10 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 5.000 OAL 5 Flute

Iscar H400 ERD1.25-5-2.5W125-10 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 5.000 OAL 5 Flute

Part Number: ISC3106162 ISO: H400 ERD1.25-5-2.5W125-10 ANSI:H400 ERD1.25-5-2.5W125-10
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012428
Vendor: Sussex Tool and Supply
$538.56

Description

ISCAR 3106162 Round Button Cutter End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Button Cutter
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006042
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 10
Performance & Capacity
Cut Dia Min 0.7800 19.81MM
Depth Of Cut Max 0.2950
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 3.80°
Materials & Finish
Tool Material Steel
