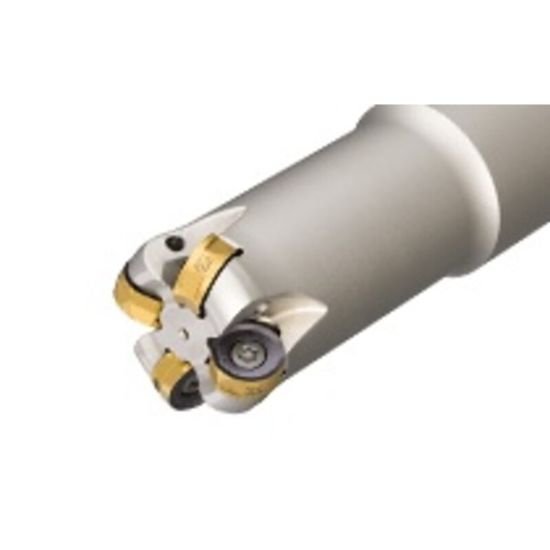

Picture of Iscar H400 ERD1.25-4-2.5W125-12 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 4.725 OAL 4 Flute

Iscar H400 ERD1.25-4-2.5W125-12 Milling Cutter Button Cutter 1.250 Diameter Weldon 1.250 4.725 OAL 4 Flute

Part Number: ISC3105952

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012390
Vendor: Sussex Tool and Supply
$504.00
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Max Ramp Angle 5.60°
Insert Application Roughing, Semi Finishing
Cutter Type Button Cutter
Depth Of Cut Max 0.3400
Overall Length 4.7250 120.02MM
Insert Size (IC) 12
Machine Side (Toolpost) WELDON1.2500
Insert Type Negative
Insert Screw 7001973
Insert Style RN
Type of Tool End Mill
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape Round
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 4
Shipping State TEXAS
Tool Material Steel
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 1.2500 31.75MM - 1-1/4
Cut Diameter Min 0.7770 19.74MM
Coolant Thru Thru Coolant
Cut Diameter Max 1.2500 31.75MM - 1-1/4
Made In USA No
Coolant Type Through Hole
