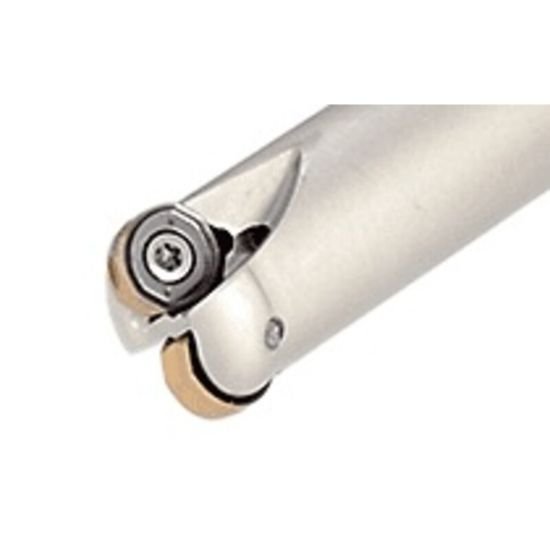

Picture of Iscar H400 ERD1.00-3-2.5W100-10 Milling Cutter Button Cutter 1.000 Diameter Weldon 1.000 5.000 OAL 3 Flute

Iscar H400 ERD1.00-3-2.5W100-10 Milling Cutter Button Cutter 1.000 Diameter Weldon 1.000 5.000 OAL 3 Flute

Part Number: ISC3106161 ISO: H400 ERD1.00-3-2.5W100-10 ANSI:H400 ERD1.00-3-2.5W100-10
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012427
Vendor: Sussex Tool and Supply
$431.04

Description

ISCAR 3106161 Round Button Cutter End Mill Weldon 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Button Cutter
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006042
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 10
Performance & Capacity
Cut Dia Min 0.5300 13.46MM
Depth Of Cut Max 0.2950
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 5.80°
Materials & Finish
Tool Material Steel
