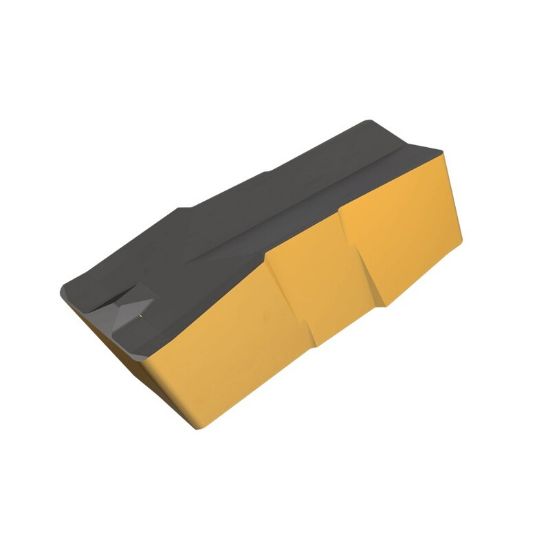

ISCAR GIP 3.00E-0.20 IC20N Grooving,Groove Turning Insert 0.008 Corner Radius 0.118 Wide

ANSI: GIP 3.00E-0.20 IC20N

ISO: GIP 3.00E-0.20 IC20N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6402218
Delivery date: 3-5 days
$34.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Precision Double-Ended Inserts for Grooving and Turning

File Downloads

DXFSTPSTPL

Grade and Coating Description

A very hard cermet grade for turning and grooving. Recommended for finishing operations on steels and alloy steels at high cutting speeds and low feeds. Features excellent surface finish, high wear resistance, plastic deformation durability and prevents built-up edge.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Insert
Shipping State Texas
Insert/Tool Insert
Application Grooving & Parting Insert
Material # Material#2, Material#8
Insert Type Positive
Additional Key Information 3 Clamp Down
Grade IC20N
Package Size 10
Additional Key Information 1 Groove Turning, Grooving
Sold by Pieces 10
Insert Application General Purpose
Uncategorized
Made In USA No
Dimensional Specifications
Cutting Width 0.1180 3.00MM
Corner Radius 0.0080 0.20MM
Cut Rating <30HRC Steel, Stainless Steel
Insert Size Ic 3
Face Groove Min Dia 6.3000
Depth Of Cut Max 0.5120
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI
