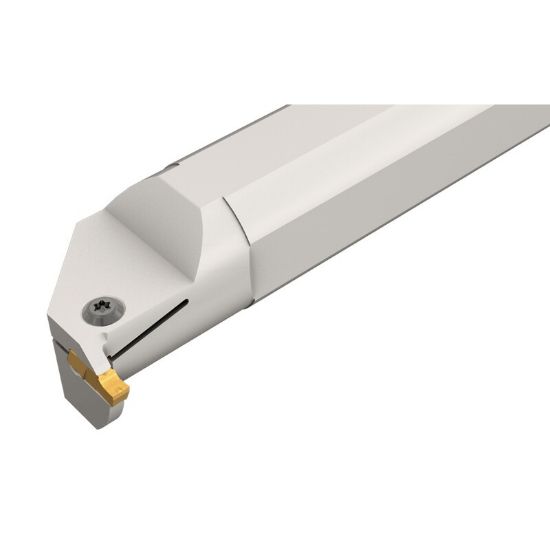

Picture of ISCAR GHIR 38.1-6 Grooving,Groove Turning Boring Bar 1.500 Tool

ISCAR GHIR 38.1-6 Grooving,Groove Turning Boring Bar 1.500 Tool

ANSI: GHIR 38.1-6

ISO: GHIR 38.1-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800360
Delivery date: 3-5 days
$461.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance

Details

Grooving and turning boring bars.

Int. Groove & Turn Int. Grooving Int. Grooving (side limit) Int. Profiling Threading (Int.)

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Grooving, Groove Turning
Shipping State Texas
Sold by Pieces 1
Insert/Tool Tool
Application Int.Grooving
Insert Type Positive
Additional Key Information 3 Clamp Down
Package Size 1
Insert Application General Purpose
Additional Key Information 2 Boring Bar
Uncategorized
Made In USA No
Dimensional Specifications
Cutting Width 0.1570 3.99MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Machine Side Connection Type Boring Bar
Insert Size Ic 6
Depth Of Cut Max 0.3150
Machine Side BBAR1.5000
Overall Len 12.0000 304.80MM
Cutting & Machining Properties
Insert Style GI,GI,GI
Hand R/L Right
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Dog Bone
