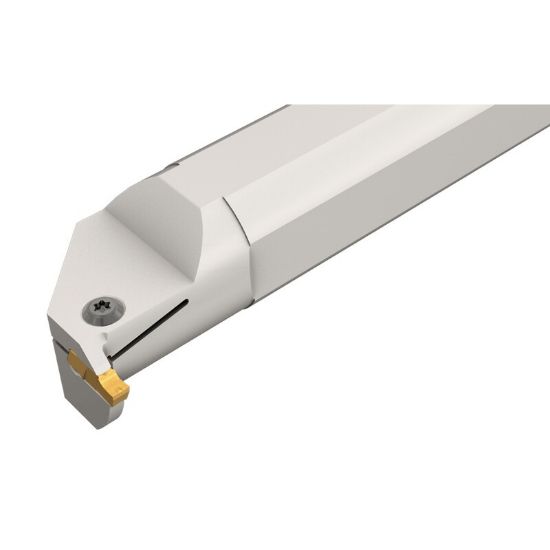

Picture of ISCAR GHIR 38.1-4 Grooving,Groove Turning Boring Bar 1.500 Tool

ISCAR GHIR 38.1-4 Grooving,Groove Turning Boring Bar 1.500 Tool

ANSI: GHIR 38.1-4

ISO: GHIR 38.1-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800359
Delivery date: 3-5 days
$461.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance

Details

Grooving and turning boring bars.

Int. Groove & Turn Int. Grooving Int. Grooving (side limit) Int. Profiling Threading (Int.)

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Additional Key Information 3 Clamp Down
Insert/Tool Tool
Insert Application General Purpose
Additional Key Information 1 Groove Turning, Grooving
Sold by Pieces 1
Shipping State Texas
Additional Key Information 2 Boring Bar
Application Int.Grooving
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 4
Depth Of Cut Max 0.1970
Tool Material Steel
Machine Side BBAR1.5000
Machine Side Connection Type Boring Bar
Overall Len 12.0000 304.80MM
Cutting Width 0.0980 2.49MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GI
Inter/Extern Internal
