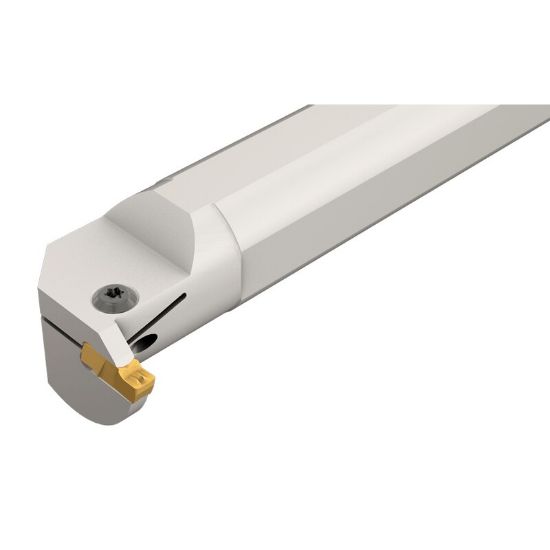

Picture of ISCAR GHIL 38.1C-612 Grooving,Groove Turning Boring Bar 1.500 Tool

ISCAR GHIL 38.1C-612 Grooving,Groove Turning Boring Bar 1.500 Tool

ANSI: GHIL 38.1C-612

ISO: GHIL 38.1C-612

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800624
Delivery date: 3-5 days
$523.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance

Details

Int. Groove & Turn Int. Grooving Int. Grooving (side limit) Int. Profiling Threading (Int.)

Grooving and turning boring bars with coolant holes.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Shipping State Texas
Insert/Tool Tool
Additional Key Information 1 Groove Turning, Grooving
Insert Type Positive
Additional Key Information 3 Clamp Down
Application Int.Groove Turning, Int.Grooving
Package Size 1
Insert Application General Purpose
Additional Key Information 2 Boring Bar
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 10.0000 254.00MM
Tool Material Steel
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting Width 0.1890 4.80MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.4720
Insert Size Ic 6
Machine Side BBAR1.5000
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Style GI,GI,GI
Hand R/L Left
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Dog Bone
