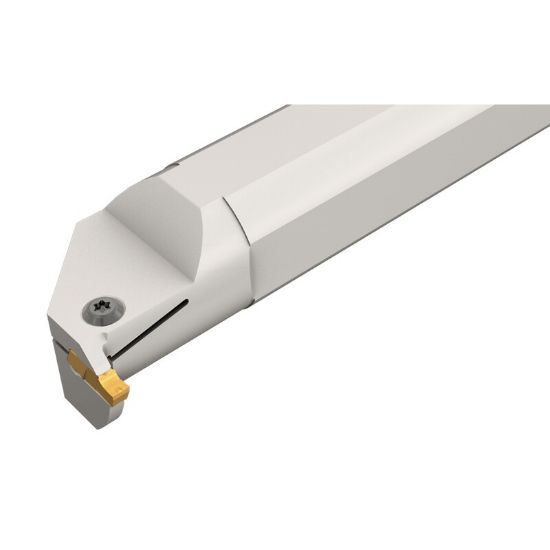

Picture of ISCAR GHIL 31.7-6 Grooving,Groove Turning Boring Bar 1.250 Tool

ISCAR GHIL 31.7-6 Grooving,Groove Turning Boring Bar 1.250 Tool

ANSI: GHIL 31.7-6

ISO: GHIL 31.7-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800309
Delivery date: 3-5 days
$415.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance

Details

Grooving and turning boring bars.

Int. Groove & Turn Int. Grooving Int. Grooving (side limit) Int. Profiling Threading (Int.)

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Grooving
Package Size 1
Sold by Pieces 1
Shipping State Texas
Insert Application General Purpose
Additional Key Information 2 Boring Bar
Additional Key Information 1 Grooving, Groove Turning
Insert Type Positive
Additional Key Information 3 Clamp Down
Insert/Tool Tool
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 10.0000 254.00MM
Insert Size Ic 6
Machine Side BBAR1.2500
Machine Side Connection Type Boring Bar
Cutting Width 0.1570 3.99MM
Depth Of Cut Max 0.2520
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style GI,GI,GI
Hand R/L Left
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern Internal
