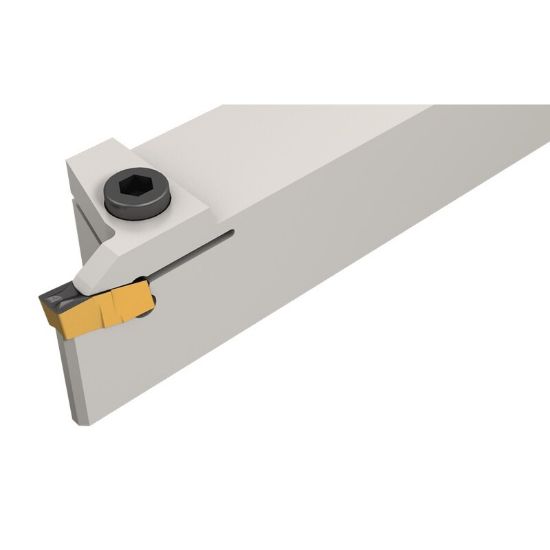

Picture of ISCAR GHDR 16-4 ST Cut Off,Grooving,Groove Turning,Polley V Grooving Stick Tool 0.629 Tool

ISCAR GHDR 16-4 ST Cut Off,Grooving,Groove Turning,Polley V Grooving Stick Tool 0.629 Tool

ANSI: GHDR 16-4 ST

ISO: GHDR 16-4 ST

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2861221
Delivery date: 3-5 days
$157.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional).

Details

External tools for turning, grooving and parting.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Grooving, Groove Turning, Cut Off, Polley V Grooving
Shipping State Texas
Insert Application General Purpose
Insert Type Positive
Additional Key Information 2 Stick Tool
Additional Key Information 3 Clamp Down
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Groove Turning
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Cutting Width 0.1570 3.99MM
Depth Of Cut Max 0.3940
Insert Size Ic 4, 5
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side STICK TOOL0.6299
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Overall Len 3.0710 78.00MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
