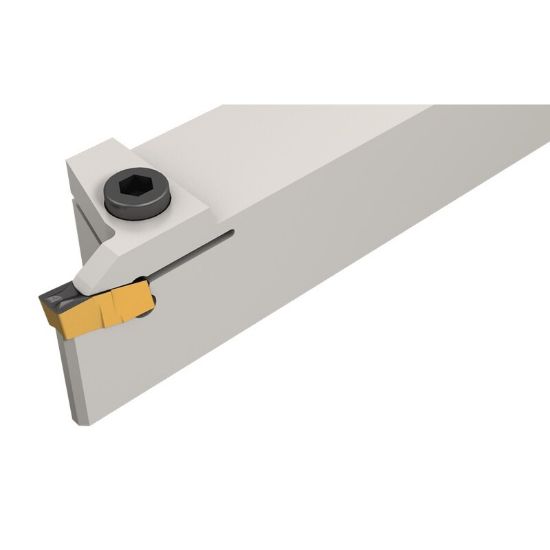

Picture of ISCAR GHDL 25.4-4 Grooving,Groove Turning,Groove Threading Stick Tool 1.000 Tool

ISCAR GHDL 25.4-4 Grooving,Groove Turning,Groove Threading Stick Tool 1.000 Tool

ANSI: GHDL 25.4-4

ISO: GHDL 25.4-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800096
Delivery date: 3-5 days
$189.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Ext. Grooving Ext. Grooving & Turning Ext. Profiling Parting Pulley V Grooving Threading (Ext.) Groove Turn T

For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Additional Key Information 2 Stick Tool
Additional Key Information 3 Clamp Down
Package Size 1
Additional Key Information 1 Grooving, Groove Threading, Groove Turning
Shipping State Texas
Insert Application General Purpose
Sold by Pieces 1
Application Ext.Groove Turning, Ext.Grooving, Ext.Threading
Insert/Tool Tool
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side STICK TOOL1.0000
Cutting Width 0.1570 3.99MM
Depth Of Cut Max 0.4000
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 4
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Tool Material Steel
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
