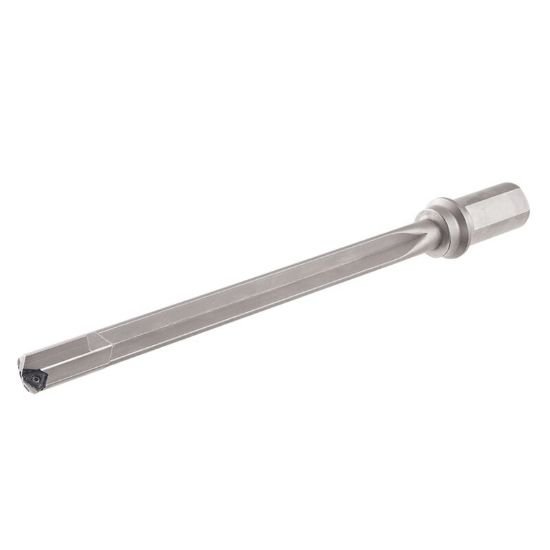

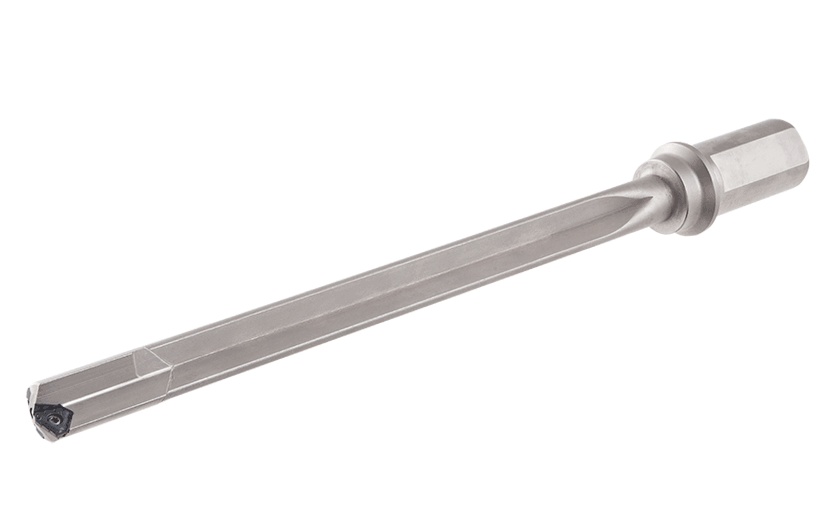

Picture of Iscar GD-DH 0.562-25D-I1"-07 0.562" GunDrills Carrying Triangular Inserts Featuring 3 Chip Splitting Cutting Edges and a Wiper for High Hole SurFace Quality

Iscar GD-DH 0.562-25D-I1"-07 0.562" GunDrills Carrying Triangular Inserts Featuring 3 Chip Splitting Cutting Edges and a Wiper for High Hole SurFace Quality

Part Number: ISC4849677 ISO: GD-DH 0.562-25D-I1"-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112598
Vendor: Sussex Tool and Supply
$930.00
ISCAR 4849677 0.562" Gundrills Carrying Triangular Inserts Featuring 3 Chip Splitting Cutting Edges and a Wiper for High Hole Surface Quality Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Gun Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 18.4690 469.11MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 1
Tool Dia 0.5625 14.29MM - 9/16
Type Of Tool Drill
Flute Length 14.8430 377.01MM
Cut Dia Min 0.5625 14.29MM - 9/16
Gun Drill Component Tubes
