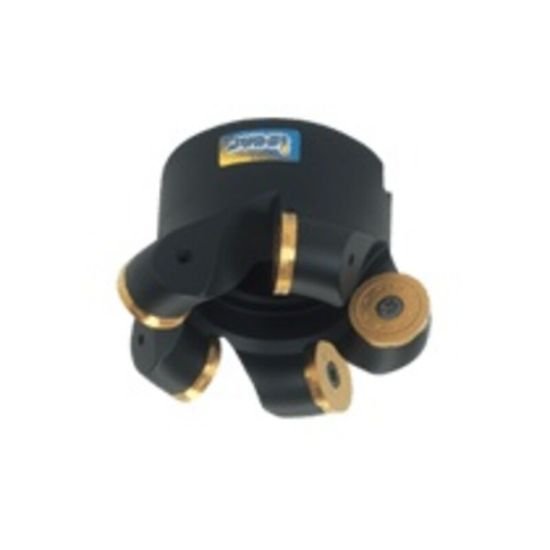

Picture of Iscar FR D321A400-6-1.50-20 Milling Cutter Button Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

Iscar FR D321A400-6-1.50-20 Milling Cutter Button Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

Part Number: ISC3102963 ISO: FR D321A400-6-1.50-20 ANSI:FR D321A400-6-1.50-20
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011983
Vendor: Sussex Tool and Supply
$1,056.00

Description

ISCAR 3102963 Round Button Cutter SHELL1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Button Cutter
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Insert Type Positive
Coolant Type External
Insert Screw 7000212
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 6
Tool Dia 4.0000 101.60MM
Insert Size Ic 20
Geometry & Angles
Corner Radius 0.3940 10.01MM
Performance & Capacity
Cut Dia Min 3.2100 81.53MM
Depth Of Cut Max 0.3940
Cut Dia Max 4.0000 101.60MM
Materials & Finish
Tool Material Steel
