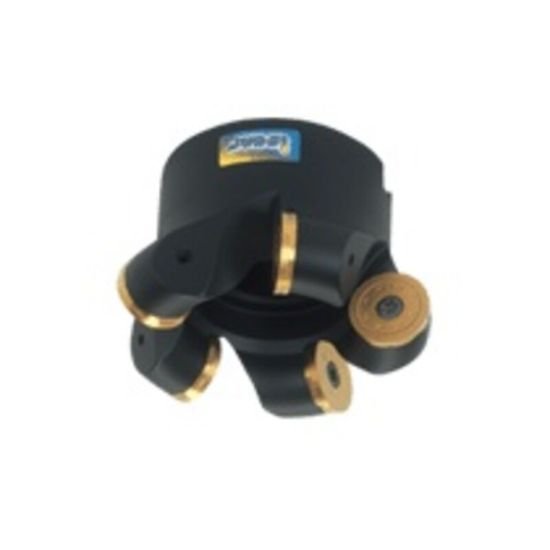

Picture of Iscar FR D060A080-05-25.4-20 Milling Cutter Button Cutter 3.150 Diameter Face Mill 1.000 1.968 OAL 5 Flute

Iscar FR D060A080-05-25.4-20 Milling Cutter Button Cutter 3.150 Diameter Face Mill 1.000 1.968 OAL 5 Flute

Part Number: ISC3197062 ISO: FR D060A080-05-25.4-20 ANSI:FR D060A080-05-25.4-20
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012815
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3197062 Round Button Cutter SHELL1.0000 Positive 3.1500 80.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Button Cutter
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Insert Type Positive
Coolant Type External
Insert Screw 7002377
Dimensions & Sizing
Overall Length 1.9680 49.99MM
Flutes/Inserts 5
Tool Dia 3.1500 80.01MM
Insert Size Ic 20
Geometry & Angles
Corner Radius 0.3940 10.01MM
Performance & Capacity
Cut Dia Min 2.3620 59.99MM
Depth Of Cut Max 0.3940
Cut Dia Max 3.1500 80.01MM
Materials & Finish
Tool Material Steel
